Automobile assembly process

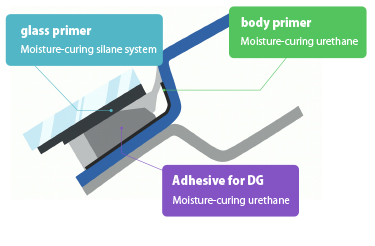

direct glazing
The windshield, rear window, and quarter window glass are bonded directly to the body, forming an adhesive layer.
[One-component moisture-curing polyurethane]
sunroof manufacturing
Attaches glass to sunroof frames. Waterproof seals each part. Lubricating grease for moving sunroofs.
[One-component moisture-curing polyurethane adhesive, 1.5-component polyurethane adhesive] [Hot butyl] [Grease]
resin back door
Direct glazing of glass onto plastic rear doors.
[1.5-component polyurethane adhesive]
gas tank butyl
Waterproof seal around the fuel filler cap. [Hot butyl]
door sealer
Applying a waterproof sheet to the inside of the door. [Hot butyl]
Automobile body process
mastic adhesive
It bonds the exterior and interior panels of the hood, trunk lid, doors, roof, etc., increasing the rigidity of the entire assembly and preventing vibration and noise. [Synthetic rubber]
Body sealer
Waterproofing and dustproofing the rear joints of automobiles. Rust prevention for steel plate edges. [Synthetic rubber]
Spot sealant
Waterproof, dustproof, and rustproof spot welds. [Synthetic rubber]
Hemming adhesive
Maintains the strength of the caulking structure between the outer and inner panels. Improves rust resistance. [Epoxy]
